ACM Series Gums Grinding Mill
Product Introduction

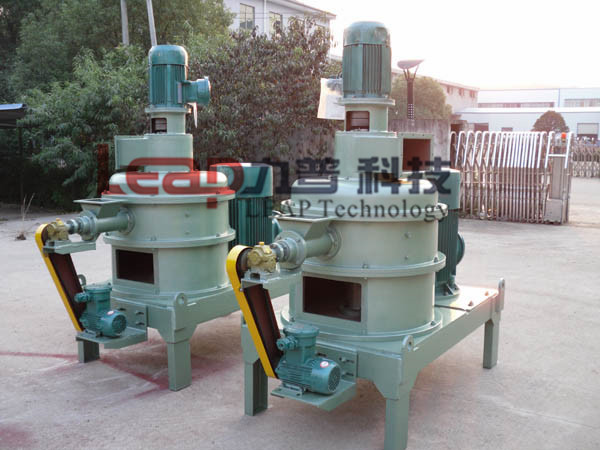

ACM Series Gums Grinding Mill
Feature
1)Low-noise
2)Environment-friendly
3) High capacity
4)Stainless steel main parts or Carbon Steel parts
5)Precipitator using a cartridge filter area, Filtration area of 96 square meter.
The current domestic crushing equipment, the high hardness, crushing the material difficulty exists, such as Short life for the wearing parts, not easy to crush high hardness, high humidity, sticky, low melting point, hard To discharge the material, and flammable. The main advantages of various types of integrated mill in the ACM Series, based on the repeated practice made. The correct fineness is based on the material.
Working Principle
Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be impacted by high-speed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers,
the material would be milled into fine powder. The milled powder would go with air flow up to the classifying chamber. With the help of
adjustable classifier wheel, coarse powder and fine powder would be separated. Qualified fine powder would go through the wheel vane
then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber
to be milled again.
Main purpose
This applies to the following seven non-metallic mineral hardness, diatomite, fluorspar, Fluorite, mica, and Low humidity, high melting point, viscosity of sulfur Juan, pesticides, and other ultra-fine grinding of Materials to solve the major problem which current domestic crushing industry can not solve. Fineness Can reach at 5 to 10 microns. Especially for cocoa coarse material,cocoa shell,coconut cake,rice, sugar,corn, fibre material,medicinal materials...
Main Technical Parameter
| MODEL |
ACM-5 |
ACM-15 |
ACM-30 |
ACM-50 |
ACM-60 |
ACM-100 |
ACM-120 |
| Parameter\ |
| Matched Powder(kw) |
Grinding Plate |
4 |
11 |
22 |
30 |
45 |
90 |
110 |
| Classifying wheel |
0.75 |
4 |
5.5 |
7.5 |
11 |
15 |
| Feeder |
0.35 |
0.37 |
0.55 |
1.1 |
| Air Flow(m3/h) |
250-500 |
1200-2000 |
2200-3600 |
3500-5500 |
4000-7500 |
7500-15000 |
9000-18000 |
| Rotation Speed (r/min) |
Grinding plate |
9000 |
5600 |
4600 |
4200 |
2900 |
2100 |
1800 |
| Classifying wheel |
900-3500 |
750-2800 |
700-2800 |
650-2600 |
600-2400 |
500-2000 |
400-1800 |
| Pulverizatin Fineness(¦Ìm) |
5-300 |
| Dimension(l¡Áw¡Áh)cm |
690¡Á690¡Á770 |
1300¡Á650¡Á750 |
1640¡Á960¡Á1030 |
2000¡Á1200¡Á1300 |
2000¡Á1200¡Á1300 |
2400¡Á1500¡Á1600 |
2400¡Á2200¡Á2600 |
| N.W(kg) |
300 |
600 |
1000 |
1600 |
2000 |
3000 |
3500
|
