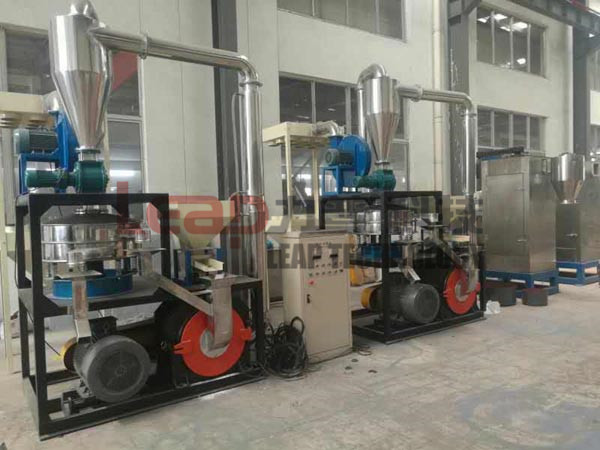

LPSLM-600 Complete line equipment:

1） LPSLM-600 Main Grinding Machine

Voltage :380V/50Hz ; Motor Power: 45KW;

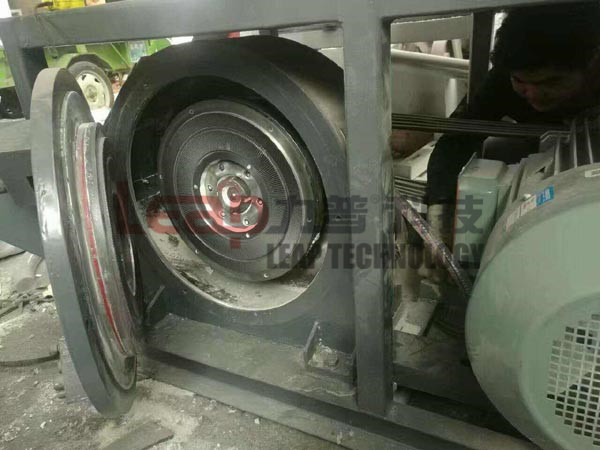

Grinding Wheel:High chrome material

Feeding way:Adjustable speed electromagnetic vibration feed
Water cooling system;Magnetic protection device
Blade material: Japan SKD-11，The blade is used on both sides

2）Blower & Cyclone

Professional design of double-layer cyclone to ensure efficient separation of materials at the same time T
To cool the material to facilitate the finished bagging
Blower motor power: 4KW

Pipeline for the stainless steel material, the material used to shut the fan rotary valve

3）Vibration sieve  section

Shaker diameter 1200mm, motor power 0.75KW, stainless steel, professional vibration motor, to ensure long-term stable operation of vibrating screen

4）Dust collector

The use of bag-type dust, simple and reliable structure, maintenance is extremely simple

Silo type dust collection bucket, so that dust recycling convenient and simple

5）Electronic control section

Mill feed using digital current control, running current at a glance
Current control feeding system

Professional production of electronic control box, high-quality Delixi electrical components

Professional line design, but also to ensure that your mill safe and reliable operation

Production line dimension:1.8m*1.3m*3.7m

Total weight:1500kgs
