Air Jet mill
Product Introduction

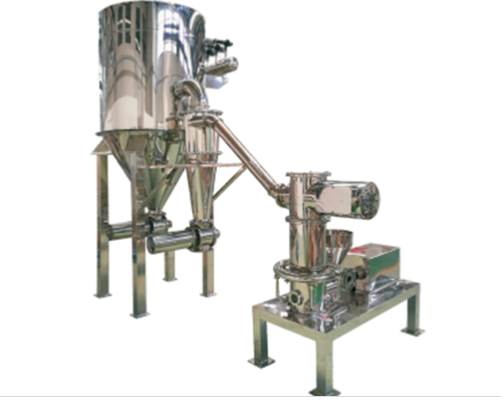

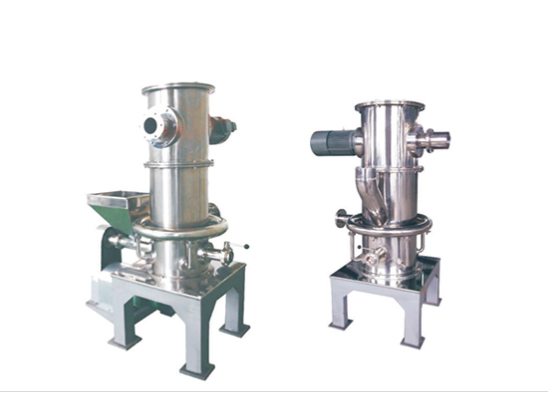

High quality stainless steel air jet mill /Laboratory Powder Air Jet Mill


Features

1.No rise in temperature: the temperature will not increase as the materials are pulverized under the working conditions of pneumatic expansion and the temperature in the milling cavity is kept normal.
2.No contamination: the whole process is contamination-free as the materials are moved by the airflow and ground through the collision and impact among themselves without involving the media.
3.Endurance: applied to material with mohs' hardness below grade 9,since the milling effect only involves the impact and collision among the grains rather than the collision with the wall.
4.Inert gas can be used as media for milling flammable and explosive materials.

Main Technical Parameters
 Parameter AJM-120 AJM-200 AJM-300 AJM-400 AJM-600 AJM-800
Capacity(kg/h) 0.2-15 10-120 50-260 80-450 200-600 400-1500
Air consumptions(m3/min) 2 3 6 10 20 40
Working pressure(Mpa) 0.70-0.90 0.70-0.90 0.70-0.90 0.70-0.90 0.70-0.90 0.70-0.90
Feed diameter(mesh) 60-325 60-325 60-325 60-325 60-325 60-325
Grinding size(um) 0.5-30 0.5-30 0.5-30 0.5-30 0.5-30 0.5-30
Energy consumption Power(KW) 20 40 60 95 188 37
