ACM Series Air Classifier Mill Pulverizer

Product Introduction

ACM Series Air Classifier Mill / Pulverizer

Working Principle
Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be impacted by highspeed rotating beater,
and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be milled into
fine powder.The milled powder would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel, coarse powder and
fine powder would be separated.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture
of coarse powder and fine powder would fall down to the milling chamber to be milled again

Technical Parameter

Parameter / Model		ACM-5	ACM-15	ACM-30	ACM-50	ACM-60	ACM-100	ACM120
Power (KW)	Grinding Plate	4	7.5	22	30	45	90	110
	Classifying wheel	0.75	2.2	4	5.5	7.5	11	15
	Feeder	0.35	0.37	0.55	0.55	0.75	1.1	1.1
Air Flow Volume (m3/h)		250~500	700~1200	2200~3600	2800~4900	4000~7500	7500~15000	9000-18000
Rotation Speed (R/min)	Grinding Plate	9000	7000	4200	3800	3000	2100	1800
	Classifying Wheel	900~3500	800~3200	700~2800	400~2600	600~2400	500-2000	400~1800
	Feeder	20~100
Finished Fineness (μm)		5~300
Output (kg/h)		2~150	10~250	30~800	40~1000	50~1500	80~3000	100~3500
Outline		700x1000x1050	1300x1000x1170	1670x1120x1200	1830x1100x1300	2070x1400x1600	2400x1500x1600	2400x2200x2600
LxWxH(mm)		700x1000x1050	1300x1000x1170	1670x1120x1200	1830x1100x1300	2070x1400x1600	2400x1500x1600	2400x2200x2600
Weight(kg)		300	600	1000	1500	2000	3000	3500

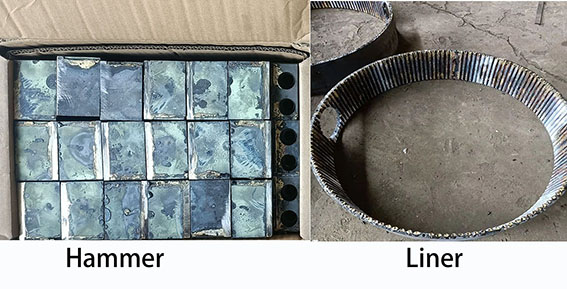

ACM series pulverizer spare part :

Hammers

Liner
