BXM rod pin mill mill is widely suitable for the pulverization in food, chemical, medicine, Chinese herbal medicine.
1.Description
BXMseries pin mill is very suitable for sticky and heat-sensitive material ,for it¡¯s special structure. It is a product from Germany technology.
2.Application
Foodstuff:sugar, rice, corn, starch, oat, flour, soya, pea, spice, cocoa, potato powder,
salt, milk powder, onion,coffee, dextrose etc
Chemical: pigment, alumina, ferric oxide, copper, graphite etc Plastic:polythene, PVC,
bakelite, epoxy resin etc
Construction material:limestone, gypsum, fluorite, mica, kaolin clay, straw, shell etc
Medicine:roots, bark, leaves , herb, bone powder etc
3.Principle and structure

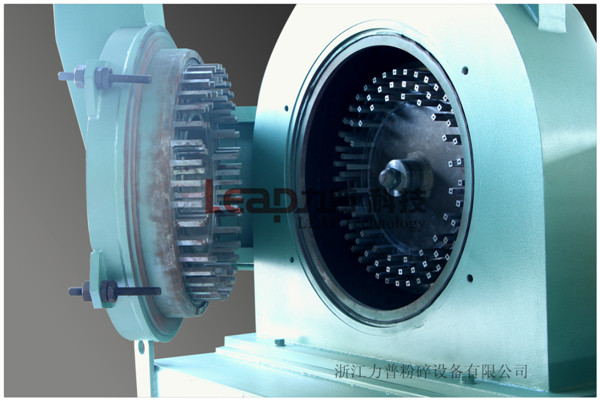

It¡¯s main parts are housing, door, rotary disc, static disc, shaft, air sealing. There is a rubber
ring between door and housing for prevent power out.It¡¯s milling zone is consist of rotary pins
and static pins. Particles hit these pins and get split. Particles can get abundant times of hit
because there are several rows of pins. The rotary pins can suck airs to reduce the heat
generated by friction. There is a air sealing device to protect bearing keep clean.
4.Main Parameter
| Model |
BXM-250 |
BXM-400 |
BXM-630 |
BXM-800 |
| Parameter |
| Power(kw) |
5.5~7.5 |
15~22 |
30~37 |
45~55 |
| Velocity(r/min) |
9000 |
4680 |
2910 |
2300 |
| Fineness£¨¦Ìm£© |
3000~30 |
| Outline dimensions(mm)(L¡ÁW¡ÁH) |
1000¡Á700¡Á1000 |
1700¡Á850¡Á1425 |
2700¡Á1200¡Á2150 |
2800¡Á1300¡Á2300 |
| Net Weight(kg) |
300 |
800 |
1500 |
2200 |
