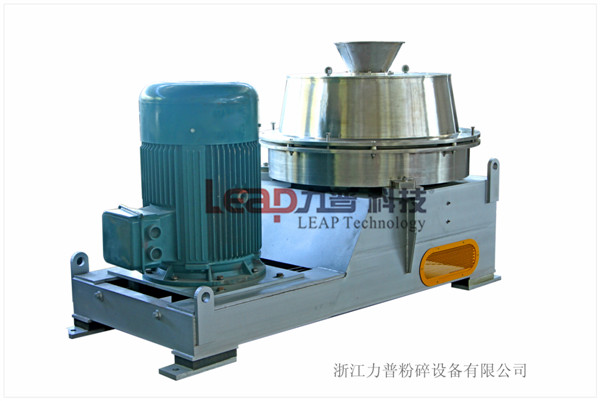

HWM Series Turbo Mill

Product Introduction

I. Overview

HWM Turbo mill is on the basis of existing ultrafine grinding technology, through technical cooperation with the Germany company, jointly developed a new generation of ultra-fine grinding equipment, its technology in the domestic leading position, to fill the gap, the whole Machine and wearable device has been patented for our powder engineering industry provides energy efficient ultrafine grinding equipment. German engineering company is specialized in the research and development of superfine powder processing technology for more than 30 years of history of the company, the development of ultra-fine grinding equipment to enjoy first-class level in Germany and the international market, high visibility and excellent reputation.
HWM advanced whirlwind grinding principle with its unique features not disassemble the adjustable gap, strong eddy crush zone produced a striking effect of crushing and drying effects. The machine showed that compared with other mill: grinding material imported from HWM whirlwind through the shortest route to the exit, so crushed the lowest energy consumption, but for special high-grade powder materials processing equipment. Its superior technical performance even more than similar foreign equipment, can substitute the imports, it is good performance, small size, low power consumption and low noise ideal powder of green energy-saving equipment.

II.use and characteristics
HWM turbo mill is a suitable inorganic, organic common ultrafine grinding mill, widely used in low to medium hardness ultrafine material chemicals, dyes, plastics, non-metallic minerals, pharmaceuticals, feed, food and other industries crushing, Almost all heat-sensitive materials for polyvinyl alcohol, PVC, PE, and other fibrous materials can be ultra-fine grinding, the smallest product size up to 2 ~ 5um.
The machine features the following:
1, using a conical rotor and the stator, by lifting the casing (stator) to adjust the gap between the rotor and the stator to control the fineness and yield gap adjustment range is 0 ~ 5mm;
2, the rotor using a special high-strength steel in Europe and high hardness wear-resistant castings, rotor outermost end of the line speed of 125 m / sec or more, while having a long life and other characteristics;
3, the use of computer-aided design of the cabinet resorted smoother, more small noise when handling sticky and cohesive materials, greatly reducing the fine powder of sticky wall phenomenon;
4, large air volume, when grinding low temperature, especially suitable for thermoplastic and fibrous materials, uniform particle size;
5, the rotor blades to increase the following optional air flow;
6, maintenance, operation, and easy to clean.

III,

MODEL/SPECS		HWM250	HWM500	HWM750	HWM1000	HWM1250
Productivity ratio		0.5	1	1.5	2	2.5
Grinding chamber diameter	mm	250	500	750	1000	1250
Fineness	um	5~200
Max power	kw	18.5	45	75	110	132
Air volume	m³/min	20	35	55	75	85
Net Weight	kg	500	1100	2300	3000	3600
